Stainless steel perforated tubes are prized for their exceptional strength and corrosion resistance, ideal for harsh environments such as marine, chemical processing, oil and gas industries etc. These tubes are resistant to pitting and cracking and easily withstand extreme conditions. As the leading manufacturer in Dubai, UAE, we supply high quality stainless steel perforated tubes to the highest standards, ensuring reliable performance and durability for cleaning jobs essential.
| ASTM | ASTM A249, A269, A270 |
| Thickness | 0.2 to 15mm |
| Outer Diameter | 1/8 to 24 Inch Nominal bore, 1/4 to 24 Inch Outer Diameter sizes |
| Hole size | 3mm dia on a 6mm pitch |
| Opening diameter | 0.2 to 100mm |
| Mill Test Certificate | EN10204 3.1 |
| Finish | BA Finish inside and outside, Perforated finish inside and outside |
| Material | SS 304L,SS 304, SS 316L, SS 316,SS201 |
| Type | As EFW, Welded, ERW, Semi Seamless, Seamless, Bead Removed |
| Packing | Ends Capped, Sleeved, Wooden Boxed |
| Grade | Carbon | Manganese | Phosphorous | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
| 304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| 304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| 316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| 316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Temperure | Heat | Yield Strength | Tensile Strength | Elongation |
|---|---|---|---|---|---|
| Min. | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| 304L | 1900 (1040) | Solution | 25(170) | 70(485) | 35 |
| 316L | 1900(1040) | Solution | 25(170) | 70(485) | 35 |
| 304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
| 316 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel Perforated Tube as per DIN, ISO, JIS or ANSI Standard.
Stainless Steel Perforated Tube applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

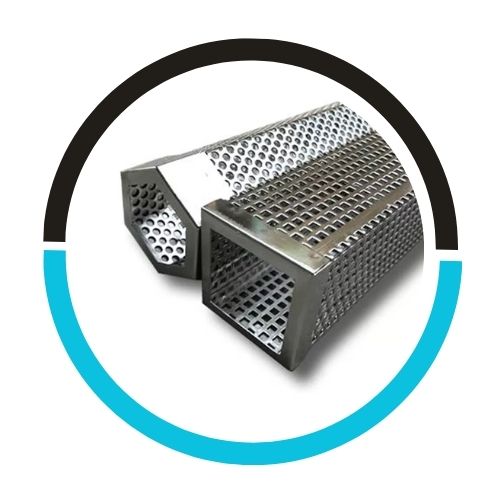

Stainless steel perforated tubes are available in various configurations, including round, square, or slotted holes. These can be arranged in straight, staggered, or custom patterns. Additionally, the tubes come in different diameters, thicknesses, and lengths to suit specific applications.
