Home > Stainless Steel > Stainless Steel Instrumentation Tube

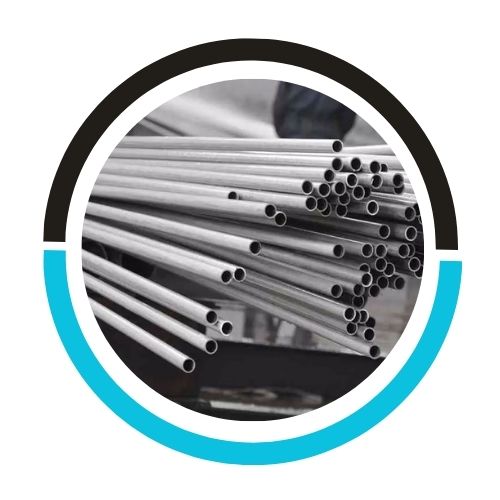

Stainless steel instrumentation tubing is known for its durability and corrosion resistance, making it perfect for harsh environments such as marine, chemical processing and oil and gas fields These coils perform exceptionally well in a variety of conditions in strong, resistant to pitting and cracking. As a leading dealer and distributor in Dubai, UAE, we offer high quality stainless steel instrumentation tubing to the highest standards. Our products ensure reliable and durable performance for critical applications.
| Standard Specifiaction | ASTM A270, ASTM A269, EN 10216-5, ASTM A213, DIN 2391 Stainless Steel Instrumentation Tubing |
| Delivery Condition | Annealed and Pickled, Bright Annealed, MP, Polished, Cold Drawn, MF |
| Pressure Rating | 15000 psig |
| Size in MM | 3.18 To 63 mm |
| Thickness in Mm | 0.5 To 8 mm |
| Processing Service | Punching, Bending, Welding, Decoiling, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Grade | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| class | tensile strength mpa, (min) | Age extension in 50 mm gauge length min | Yield strength mpa, (min) | Hardness (max) | |
|---|---|---|---|---|---|
| bhn | rb | ||||
| 304 | 585 | 56 | 244 | 191 | 72 |
| 304L | 585 | 56 | 210 | 191 | 72 |
| 316 | 615 | 57 | 245 | 197 | 75 |
| 316L | 585 | 56 | 215 | 197 | 75 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel Instrumentation Tube as per DIN, ISO, JIS or ANSI Standard.
Stainless Steel Instrumentation Tube applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
When installing stainless steel instrumentation tubing, consider proper support and alignment to prevent stress and vibration damage. Ensure compatibility with fittings and sealants to avoid leaks. Also, account for thermal expansion and contraction to maintain system integrity.
