Our company excels in providing a diverse selection of Stainless Steel 304L Forgings sourced from top-tier suppliers renowned for their stainless steel expertise. These forgings are carefully custom-built to cater to a wide array of industry requirements, offering flexibility in size, grades, and standards. Widely utilized in sectors including automotive, aerospace, and food processing, they are prized for their outstanding corrosion resistance and longevity. Engineered with a sturdy microstructure, these 304 stainless steel forgings deliver superior strength and durability, ensuring reliable mechanical performance across various applications.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 304L Forgings as per DIN, ISO, JIS or ANSI Standard.

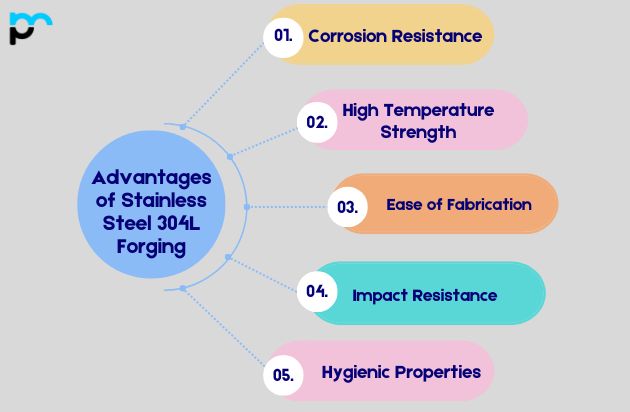

Corrosion Resistance: One of the primary benefits of Stainless Steel 304L is its excellent corrosion resistance. It withstands corrosion from a wide range of chemicals, as well as atmospheric conditions, making it suitable for various environments, including marine and industrial settings.
High Temperature Strength: Stainless Steel 304L maintains its mechanical properties at elevated temperatures, making it suitable for applications where exposure to high temperatures is common.
Ease of Fabrication: It is relatively easy to forge Stainless Steel 304L into complex shapes and configurations. This ease of fabrication extends its usability across a wide range of industries, including aerospace, automotive, and construction.
Impact Resistance: The material has good impact resistance, which enhances its durability and reliability in applications where mechanical stresses are significant.
Hygienic Properties: Stainless Steel 304L is non-porous and easy to clean, making it ideal for applications requiring high levels of cleanliness and hygiene, such as in food processing and medical equipment.
Stainless Steel 304L Forgings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Industrial Equipment: Stainless Steel 304L forgings are used in the manufacturing of industrial equipment such as valves, pumps, fittings, and fasteners. Its corrosion resistance and durability make it suitable for handling chemicals, oils, and gases.
Food Processing: In the food and beverage industry, Stainless Steel 304L is preferred for equipment like tanks, piping, and processing machinery. Its hygienic properties, resistance to corrosion from food acids, and ease of cleaning make it ideal for maintaining sanitary conditions.
Architectural Applications: Stainless Steel 304L forgings are used in architectural applications for building facades, handrails, door and window fittings, and decorative elements. Its aesthetic appeal, corrosion resistance, and durability in various weather conditions make it a popular choice.
Mechanical Properties: Determine the mechanical properties required, such as tensile strength, yield strength, hardness, and impact resistance. These properties should align with the operational conditions and stresses the forgings will experience.
Fabrication Requirements: Consider the ease of fabrication and machining. Stainless Steel 304L is generally easy to forge, weld, and machine, but the complexity of your design and the manufacturing processes involved (e.g., forging, machining, heat treatment) should be taken into account.
Size and Shape: Specify the size and shape of the forgings required for your application. Stainless Steel 304L forgings can be produced in various shapes and sizes, but ensure they meet dimensional tolerances and surface finish requirements for your specific needs.
Stainless Steel 304L forgings are generally resistant to galvanic corrosion when paired with other stainless steels or noble metals. However, when coupled with dissimilar metals (e.g., aluminum, copper), galvanic corrosion can occur due to potential differences, requiring careful consideration of the application environment to prevent such issues.
When selecting Stainless Steel 304L forgings, consider factors such as corrosion resistance in the application environment, mechanical properties needed (strength, hardness), ease of fabrication, and regulatory requirements. Compatibility with other materials and cost-effectiveness are also crucial considerations for optimal performance and longevity.
Yes, Stainless Steel 304L forgings are highly recyclable. They can be melted down and reused without losing their inherent properties, making them environmentally friendly. Recycling stainless steel helps conserve natural resources and reduces energy consumption compared to producing new materials.
Stainless Steel 304L forgings generally do not require corrosion protection coatings due to their inherent corrosion resistance. However, in highly aggressive environments or specific applications, coatings like paints or specialized finishes may be applied to enhance longevity or provide additional protection against specific corrosive agents.
