Our company excels in providing a diverse selection of Stainless Steel 304 Forgings sourced from top-tier suppliers renowned for their stainless steel expertise. These forgings are carefully custom-built to cater to a wide array of industry requirements, offering flexibility in size, grades, and standards. Widely utilized in sectors including automotive, aerospace, and food processing, they are prized for their outstanding corrosion resistance and longevity. Engineered with a sturdy microstructure, these 304 stainless steel forgings deliver superior strength and durability, ensuring reliable mechanical performance across various applications.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| (UNS) | Tensile Strength (MPa) ≥ | Yield Strength ≥ (MPa) at 0.2% Offset | Elongation in 50 mm (%, ≥) | Reduction of Area, %, ≥ | Brinell Hardness (HBW) ≤ | Rockwell Hardness (HRBW) ≤ | Product | Condition |
| 304 (UNS S30400) | 515 | 205 | 40 | – | 201 | 92 | Plate, Sheet, and Strip | – |
| 515 | 205 | 40 | 50 | – | – | Bars and Shapes | Hot finished | |
| 620 | 310 | 30 | 40 | – | – | Cold finished, Dia ≤ 12.7mm | ||
| 515 | 205 | 30 | 40 | – | – | Cold finished, Dia. > 12.7mm |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 304 Forgings as per DIN, ISO, JIS or ANSI Standard.

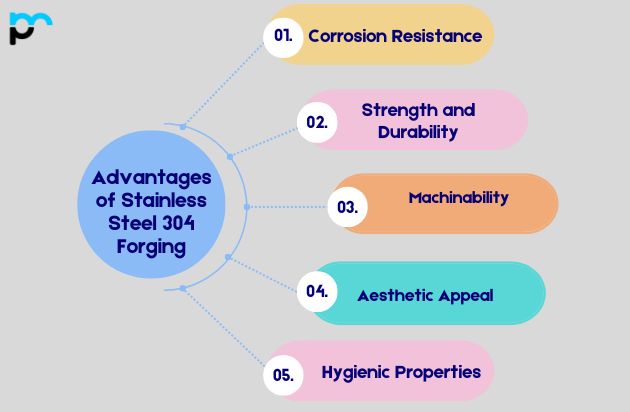

Corrosion Resistance: Stainless Steel 304 is highly resistant to corrosion in a wide range of environments, including acidic, alkaline, and chloride-rich conditions. This makes it suitable for applications where exposure to moisture or corrosive substances is a concern.
Strength and Durability: It has good strength characteristics, especially in its annealed state. This strength is maintained even at higher temperatures, making it suitable for forging processes where heat and pressure are applied.
Machinability: Stainless Steel 304 is relatively easy to machine compared to other stainless steel grades. This property is advantageous in forging operations where precise shapes and dimensions are required.
Aesthetic Appeal: It has a bright, clean appearance that lends itself well to applications where visual appeal is important, such as in architectural components or consumer products.
Hygienic Properties: Stainless Steel 304 is non-porous and easy to clean, making it suitable for applications in industries like food processing, pharmaceuticals, and medical equipment.
Stainless Steel 304 Forgings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Industrial Equipment: Stainless Steel 304 forgings are widely used in the manufacturing of industrial equipment such as valves, fittings, pumps, and heat exchangers. Its corrosion resistance and durability make it suitable for handling various chemicals and fluids.
Food Processing: In the food and beverage industry, Stainless Steel 304 forgings are preferred for processing equipment like tanks, vats, and piping systems. Its resistance to corrosion, ease of cleaning, and compliance with hygiene standards make it ideal for maintaining food safety.
Automotive Industry: Components in the automotive sector, such as exhaust systems, manifolds, and other engine parts, often utilize Stainless Steel 304 forgings due to their heat resistance, strength, and resistance to corrosion from road salts and environmental factors.
Application Requirements: Understand the environment in which the forgings will be used. Consider factors such as temperature, exposure to corrosive chemicals or salts, mechanical stresses, and hygiene standards (if applicable).
Corrosion Resistance: Stainless Steel 304 offers good general corrosion resistance, but its performance can vary depending on the specific environment. Ensure the forgings are suitable for the intended exposure conditions (e.g., atmospheric, marine, chemical).
Mechanical Properties: Determine the mechanical strength and toughness requirements of the forgings based on the application. Stainless Steel 304 in its annealed condition has moderate strength and good ductility, suitable for many applications. However, if higher strength is needed, consider alternative grades or heat treatments.
Stainless Steel 304 forgings can be susceptible to galvanic corrosion when in contact with dissimilar metals in a conductive environment. Proper insulation or use of compatible materials and design considerations can mitigate this risk in practical applications.
When selecting Stainless Steel 304 forgings, consider factors such as corrosion resistance in the intended environment, mechanical properties suited to operational stresses, compatibility with welding and machining processes, adherence to industry standards, and cost-effectiveness relative to alternative materials, ensuring they meet specific application needs efficiently.
Yes, Stainless Steel 304 forgings are highly recyclable. Stainless steel is a valuable material in recycling due to its durability and corrosion resistance. Recycling processes efficiently reclaim and reuse stainless steel, minimizing environmental impact and conserving resources.
Stainless Steel 304 forgings typically do not require corrosion protection coatings due to their inherent resistance to corrosion in many environments. However, in highly corrosive conditions or specific applications, coatings like paint or powder coatings may be applied for additional protection, depending on the operational requirements.
