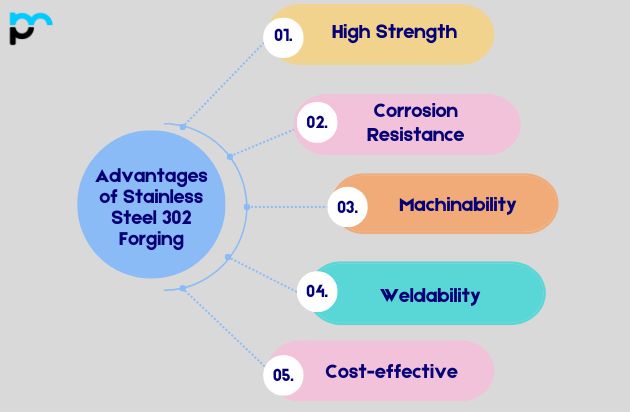

Stainless Steel 302 Forging offers robust performance in demanding industrial applications. Renowned for its strength, corrosion resistance, and versatility, SS 302 forged components excel in aerospace, automotive, and marine sectors. With superior machinability and weldability, these forgings meet stringent quality standards, ensuring durability and reliability under extreme conditions. Explore the precision and reliability of Stainless Steel 302 forging for your specialized needs in Dubai, UAE and beyond.
| Type 302 Stainless Steel Composition, % | |||||||||||
| ASTM | AISI (UNS) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | N, ≤ | Mo, ≤ | Cu, ≤ |
| ASTM A313/A313M | 302 (UNS S30200) | 0.12 | 1.00 | 2.00 | 0.045 | 0.03 | 17.0-19.0 | 8.0-10.0 | 0.1 | – | – |
| ASTM A276/A276M; ASTM A479/A479M; ASTM A580/A580M; ASTM A314; ASTM A473 ASTM A959; | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 17.0-19.0 | 8.0-10.0 | 0.1 | – | – | |
| ASTM A240/A240M; ASTM 666; SAE J405 | 0.15 | 0.75 | 2.00 | 0.045 | 0.03 | 17.0-19.0 | 8.0-10.0 | 0.1 | – | – | |
| SAE AMS 5688 | SAE 30302 | 0.15 | 1.00 | 2.00 | 0.04 | 0.03 | 17.0-19.0 | 8.0-10.0 | – | 0.75 | 0.75 |
| ASTM A276 Type 302 Stainless Steel Mechanical Properties | ||||||
| ASTM | AISI (UNS) | Tensile Strength, Mpa (ksi), ≥ | 0.2% Yield Strength, Mpa (ksi), ≥ | Elongation in 2 in. (50 mm), %, ≥ | Reduction of Area, %, ≥ | Conditions |
| ASTM A276/A276M | 302, 302B, 304, 304LN, 305, 308, 309, 309S, 309Cb, 310, 310S, 310Cb, 314, 316, 316LN, 316Cb, 316TI, 317, 321, 347, 348 | 515 (75) | 205 (30) | 40 | 50 | Annealed, Hot finished |
| 620 (90) | 310 (45) | 30 | 40 | Annealed, Cold finished, Dia ≤ 1/2 in (12.7mm) | ||
| 515 (75) | 205 (30) | 30 | 40 | Annealed, Cold finished, Dia > 1/2 in (12.7mm) | ||
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 302 Forging as per DIN, ISO, JIS or ANSI Standard.
Stainless Steel 302 Forging applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, Stainless Steel 302 forging is recyclable. Like most stainless steels, SS 302 can be recycled through a melting and reprocessing process without losing its properties. This sustainability makes it an environmentally friendly choice, reducing the need for new raw materials, conserving energy, and minimizing waste. Recycled stainless steel 302 can be used to manufacture new forgings and other products, contributing to a circular economy and environmental stewardship.
