Our company excels in providing a diverse selection of Stainless Steel 253MaForgings sourced from top-tier suppliers renowned for their stainless steel expertise. These forgings are carefully custom-built to cater to a wide array of industry requirements, offering flexibility in size, grades, and standards. Widely utilized in sectors including automotive, aerospace, and food processing, they are prized for their outstanding corrosion resistance and longevity. Engineered with a sturdy microstructure, these 253Ma stainless steel forgings deliver superior strength and durability, ensuring reliable mechanical performance across various applications.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Ce | N |
|---|---|---|---|---|---|---|---|---|---|---|
| 253 MA | 0.10 max | 0.80 max | 2.0 max | 2.0 max | 0.04 max | Bal | 10.0 – 12.0 | 20.0 – 22.0 | 0.03 – 0.08 | 0.14 – 0.20 |
| Element | Density | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness |
|---|---|---|---|---|---|
| 253 MA | 7.8 g/cm3 | 600 | 40 | 310 | HR B – 95, HB – 217 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 253Ma Forgings as per DIN, ISO, JIS or ANSI Standard.

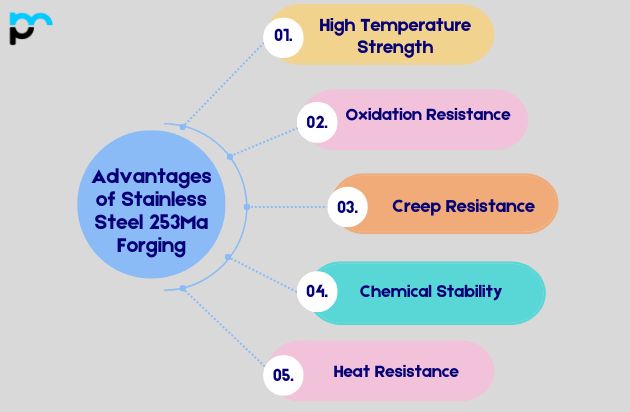

High Temperature Strength: Exceptional strength and creep resistance at elevated temperatures up to 1150°C (2100°F), making it suitable for high-heat applications.
Oxidation Resistance: Excellent oxidation resistance, maintaining integrity and performance in oxidative environments.
Creep Resistance: Superior resistance to creep deformation under high stresses at elevated temperatures, ensuring long-term structural stability.
Chemical Stability: Resistant to carburization, sulfidation, and other forms of degradation in aggressive industrial environments.
Ease of Fabrication: Good weldability and formability, facilitating manufacturing processes and customization.
Stainless Steel 253Ma Forgings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Heat Treatment Equipment: Furnace components, trays, and fixtures where resistance to high temperatures and thermal cycling is crucial.
Industrial Furnaces: Radiant tubes, muffles, and retorts used in heat treatment processes.
Power Generation: Boiler components, superheaters, and reheater tubes in power plants requiring resistance to high-temperature oxidation and thermal stress.
Chemical and Petrochemical: Tubes, reactors, and process piping exposed to corrosive atmospheres and high temperatures.
Mechanical Properties: Evaluate the required mechanical properties such as strength, toughness, and resistance to creep deformation under high stresses at elevated temperatures.
Fabrication Needs: Consider the ease of fabrication, including weldability and formability, which are important for shaping and joining components.
Industry Standards: Check if the forgings need to meet specific industry standards or certifications (e.g., ASTM, ASME) for compliance and reliability.
Cost Considerations: Evaluate the overall cost-effectiveness, including initial procurement costs and long-term maintenance and performance benefits.
Stainless Steel 253MA forgings can be susceptible to galvanic corrosion when in contact with dissimilar metals in certain environments. Proper insulation or selection of compatible materials is crucial to mitigate this risk in applications prone to galvanic corrosion, ensuring long-term durability and performance.
When selecting Stainless Steel 253MA forgings, consider high-temperature strength (up to 1150°C), corrosion resistance to oxidation and carburization, mechanical properties like creep resistance, fabrication needs including weldability, adherence to industry standards (ASTM, ASME), and supplier expertise for quality assurance in demanding thermal and corrosive applications.
Yes, Stainless Steel 253MA forgings are recyclable. Stainless steel is highly recyclable due to its valuable properties and economic benefits. Recycling contributes to resource conservation, energy savings, and reduced environmental impact, making it a sustainable choice for various industrial applications.
Stainless Steel 253MA forgings generally require minimal corrosion protection coatings due to their inherent resistance to oxidation and high-temperature corrosion. However, in extremely corrosive environments or for added protection, coatings like paints or polymer films may be applied to enhance longevity and performance in specific applications.
