Home > Stainless Steel > Stainless Steel 17-7 PH Forgings
Our company specializes in delivering an extensive range of Stainless Steel 17-7 PH Forgings sourced from leading suppliers recognized for their expertise in stainless steel manufacturing. These precision-crafted forgings are meticulously tailored to meet diverse industry needs, offering flexibility in dimensions, grades, and specifications. Ideal for applications in sectors such as defense, nuclear, and medical equipment, these 17-7 PH stainless steel forgings are valued for their exceptional strength and corrosion resistance. Engineered with a robust metallurgical structure, they guarantee prolonged operational reliability and superior mechanical performance in demanding environments.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| TYPE | Cr | Ni | Cu | Cb + Ta | C | Mn | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|
| 17-7 (H900) | min: 15.0 max: 17.5 | min: 3.0 max: 5.0 | min: 3.0 max: 5.0 | min: 0.15 max: 0.45 | 0.07 max | 1.00 max | 0.04 max | 0.03 max | 1.00 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 160,000 | Psi – 145,000 | 5 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 17-7 PH Forgings as per DIN, ISO, JIS or ANSI Standard.

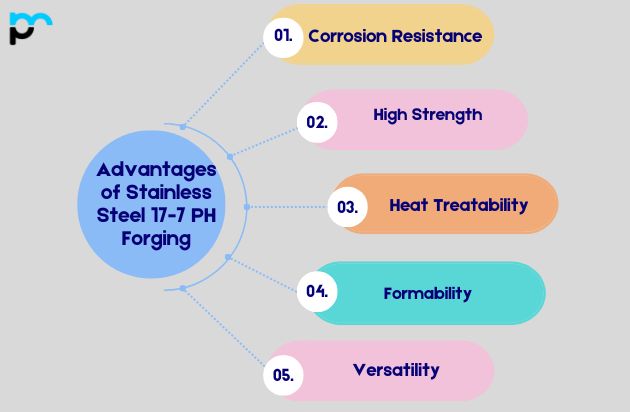

Corrosion Resistance: It provides good corrosion resistance in a variety of environments, including atmospheric and mildly corrosive conditions.
High Strength: After precipitation hardening, it achieves high strength levels comparable to many alloy steels, making it suitable for applications requiring strength and toughness.
Heat Treatability: It can be heat treated to achieve a wide range of mechanical properties, allowing for tailored strength levels and hardness.
Formability: It exhibits good formability in the annealed condition, which facilitates forging and subsequent shaping processes.
Versatility: It can be used in a range of applications including aerospace, chemical processing, automotive, and even in medical devices due to its combination of strength, corrosion resistance, and heat treatability.
Stainless Steel 17-7 PH Forgings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace Components: Due to its high strength-to-weight ratio and corrosion resistance, 17-7 PH stainless steel forgings are used in aerospace applications such as aircraft structural components, landing gear, and engine parts.
Springs and Fasteners: It is commonly used in the manufacture of springs, washers, and fasteners where its excellent fatigue resistance and mechanical properties are advantageous.
Chemical Processing: Equipment and components used in chemical processing industries benefit from the corrosion resistance of 17-7 PH stainless steel, making it suitable for pumps, valves, and fittings.
Medical Instruments: Some medical instruments and devices utilize 17-7 PH for its biocompatibility and strength, particularly in surgical instruments and implants.
Aerospace Components: Due to its high strength-to-weight ratio and corrosion resistance, 17-7 PH stainless steel forgings are used in aerospace applications such as aircraft structural components, landing gear, and engine parts.
Springs and Fasteners: It is commonly used in the manufacture of springs, washers, and fasteners where its excellent fatigue resistance and mechanical properties are advantageous.
Chemical Processing: Equipment and components used in chemical processing industries benefit from the corrosion resistance of 17-7 PH stainless steel, making it suitable for pumps, valves, and fittings.
Stainless Steel 17-7 PH forgings are susceptible to galvanic corrosion when paired with dissimilar metals in electrolyte environments. Proper insulation or selection of compatible materials can mitigate this risk, ensuring prolonged performance in applications prone to galvanic corrosion.
When selecting stainless steel 17-7 PH forgings, consider factors such as required strength, corrosion resistance, temperature stability, and compatibility with manufacturing processes. Evaluate application-specific needs, including environmental exposure and regulatory requirements, to ensure the material meets performance expectations and operational longevity.
Yes, stainless steel 17-7 PH forgings are recyclable. They can be melted down and reused in the production of new stainless steel products or other metal alloys, contributing to sustainability and resource conservation efforts in manufacturing industries.
Stainless steel 17-7 PH forgings generally exhibit good corrosion resistance due to their composition. In aggressive environments or specific applications, additional corrosion protection coatings like passivation or organic coatings may be applied to enhance durability and resistance to corrosion.
