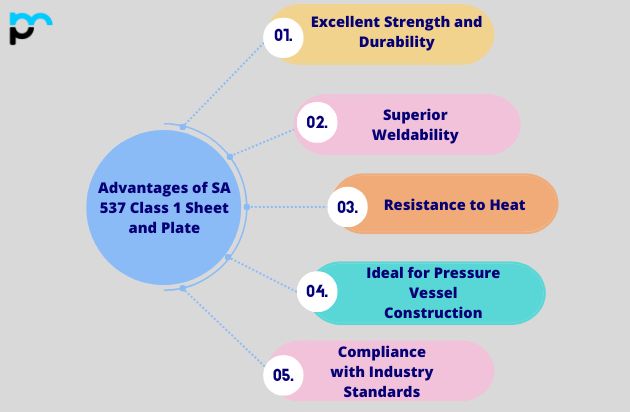

Discover our SA 537 Class 1 Sheet and Plate, meticulously crafted for high-performance in demanding industrial applications. These plates are designed to provide exceptional strength, durability, and resistance to heat, making them ideal for pressure vessels and other high-temperature environments. With excellent weldability and a robust structure, they offer superior performance in the oil, gas, and petrochemical industries. Fully compliant with industry standards, our SA 537 Class 1 plates ensure long-lasting reliability, while our commitment to quality, competitive pricing, and on-time delivery guarantees that your project needs are met with precision. Choose our SA 537 Class 1 Sheet and Plate for outstanding reliability and operational efficiency.
| Condition | normalized |
| grade | ASTM A537 Cl 1 |
| sizes |
|
| Manufacturing method | Hot Rolled |
| certificates | EN 10204 3.1/2.2 |
| Brands | Thyssen, JSPL, Essar, JSW, POSCO, Clabecq, TATA, Dillinger, Uttam, SAIL |
| Uses |
|
| Surface | Painted, Natural |
| TPI | DNV, CE, TUV, KR, CCS, RINA, LR, GL, ABS |
| Steel Grade | JIS | Germany |
| ASTM/ASME | G3115 | DIN17155 |
| A537 / SA537 | SPV36 | 19Mn5 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer SA 537 Class 1 Sheet and Plate as per DIN, ISO, JIS or ANSI Standard.
| Mn | 0.70-1.60% |
| C | 0.24% |
| S Max. | 0.025% |
| Ph Max. | 0.025% |
| CU Max. | 0.35% |
| Si | 0.15-0.50% |
| CR Max. | 0.25% |
| NI Max. | 0.25% |
| MOLY Max. | 0.08% |
| Heat Treatment | Class | Thickness | Tensile Strength, minimum, ksi [MPa] | Yield Strength, minimum, ksi [MPa] |
|---|---|---|---|---|
| Q & T | Class 3 | 21/2 in. & under [65 milimeter and under] | 80 ksi [550] | 55 ksi [380] |
| Over 4 inch [Over 100 milimeter] | 70 ksi [485] | 40 ksi [275] | ||
| Over 21/2 to 4 inch [Over 65 to 100 milimeter] | 75 ksi [515] | 50 ksi [345] | ||
| Q & T | Class 2 | 21/2 inch and under [65 milimeter and under] | 80 ksi [550] | 60 ksi [415] |
| Over 4 inch [Over 100 milimeter] | 70 ksi [485] | 46 ksi [315] | ||
| Over 21/2 to 4 inch [Over 65 to 100 milimeter] | 75 ksi [515] | 55 ksi [380] | ||
| Normalized | Class 1 | 21/2 inch and under [65 milimeter and under] | 70 ksi [485] | 50 ksi [345] |
| Over 21/2 inch [Over 65 milimeter] | 65 ksi [450] | 45 ksi [310] |
SA 537 Class 1 Sheet and Plate applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, SA 537 Class 1 Sheet and Plate are recyclable. Made from high-quality carbon steel, these plates can be melted and reused without losing their key properties. Recycling reduces environmental impact, conserves natural resources, and requires less energy compared to producing new steel. This eco-friendly process supports sustainability, making SA 537 Class 1 plates a responsible choice for industries seeking to minimize waste and promote recycling efforts in manufacturing.
