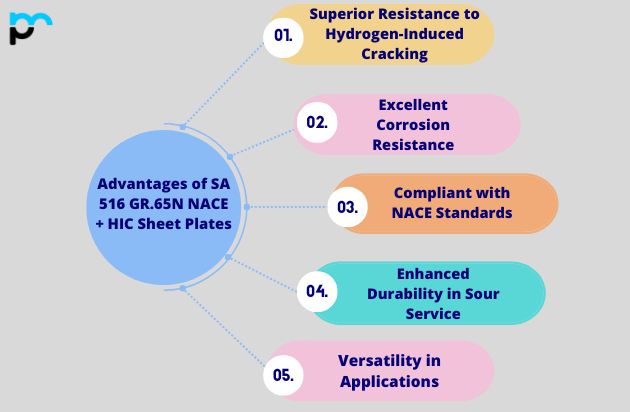

Discover our SA 516 GR.65N NACE + HIC Sheet Plates engineered to perform in the most demanding industrial conditions. These plates are designed for superior resistance to hydrogen-induced cracking (HIC) and sulfide stress cracking (SSC), ensuring reliable operation in sour service environments. Fully compliant with NACE MR 0103 and MR 0175 standards, they offer exceptional durability, corrosion resistance, and strength, making them perfect for the oil, gas, and petrochemical industries. With a focus on quality and customer satisfaction, we offer tailored solutions, competitive pricing, and timely delivery to meet your project’s specific needs. Choose our SA 516 GR.65N plates for enhanced safety and long-term performance.
| Grade | : | ASME SA 516 GR.65N Boiler and Pressure Vessel Steel Plates |
|---|---|---|
| Width | : | 1000mm-4500mm |
| Thickness | : | 5mm-150mm |
| Length | : | 3000mm-18000mm |
| Supply Condition | : | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | : | 52° C |
| Tempering | : | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | : | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | : | Hot-Rolled (HR) |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-460A/B | EN10028 P295GH | A/SA516 – Grade 65 | DIN 17155 17 MN 4 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These SA 516 GR.65N NACE + HIC Sheet Plates as per DIN, ISO, JIS or ANSI Standard.
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Tensile strength (MPa) | Yield strength (ksi) | Yield strength (MPa) | Elongation in 200mm (min)(%) | Elongation in 50mm (min) (%) |
| 65-85 | 450-585 | 35 | 240 | 19 | 23 |
SA 516 GR.65N NACE + HIC Sheet Plates applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, SA 516 GR.65N NACE + HIC Sheet Plates are recyclable. Made from carbon steel, these plates can be melted down and reused in various industrial applications. Recycling helps conserve natural resources, reduces energy consumption, and lowers environmental impact. The recycling process ensures the materials retain their quality, making them suitable for repurposing in new projects, all while adhering to sustainability practices in the industry.
