Home > Nickel Alloy > Nickel Alloy 201 Forging
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 Forgings | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 Forgings | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Nickel Alloy 201 Forging as per DIN, ISO, JIS or ANSI Standard.2

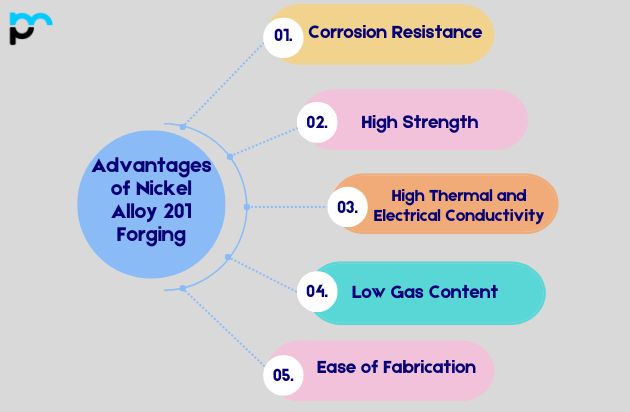

Corrosion Resistance: Nickel Alloy 201 is highly resistant to various corrosive environments, including acids, alkalis, and neutral salts. This makes it suitable for applications where corrosion resistance is critical, such as in chemical processing industries.
High Thermal and Electrical Conductivity: It exhibits excellent thermal and electrical conductivity, making it useful in applications where these properties are required, such as in electrical components and heat exchangers.
High Strength: After undergoing a forging process, Nickel Alloy 201 retains good mechanical properties, including high strength and toughness. This makes it suitable for applications where strength and durability are important.
Low Gas Content: Nickel Alloy 201 has very low carbon and oxygen content, which reduces the risk of embrittlement and improves its resistance to intergranular attack in high-temperature applications.
Ease of Fabrication: It is relatively easy to fabricate and form into various shapes and sizes through forging, machining, or welding processes, allowing for flexibility in design and manufacturing.
Nickel Alloy 201 Forging applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical Processing: Nickel Alloy 201 forgings are extensively used in chemical processing industries, including production and handling of acids, alkalis, and other corrosive chemicals. They resist corrosion in both reducing and oxidizing environments, making them suitable for components such as valves, pumps, and reaction vessels.
Electronics: Due to its high electrical conductivity and corrosion resistance, Nickel Alloy 201 is used in electronics applications. It is commonly used in connectors, electronic components, and lead frames where reliable electrical performance is crucial.
Aerospace and Defense: In aerospace and defense applications, Nickel Alloy 201 forgings are used in components that require high strength, corrosion resistance, and reliability. This includes aircraft engine components, aerospace fasteners, and defense system components.
Identify Application Requirements: Understand the operational environment and conditions in which the forging will be used. Consider factors such as temperature range, corrosion exposure (chemicals, seawater, etc.), mechanical stresses, and electrical conductivity requirements.
Corrosion Resistance: Nickel Alloy 201 is known for its excellent corrosion resistance. Determine the specific corrosive agents or environments the forging will encounter. Ensure that Nickel Alloy 201’s resistance to acids, alkalis, and other corrosive substances matches the application requirements.
Mechanical Properties: Evaluate the mechanical properties needed for the forging, such as tensile strength, yield strength, hardness, and toughness. Depending on your application, these properties may need to be balanced to optimize performance under load or in high-stress environments.
