Specifications | : | ASTM B163, B730 / ASME SB163, B730 |
Dimensions | : | ASTM, ASME and API |
Alloy k500 Tubes Size | : | 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |

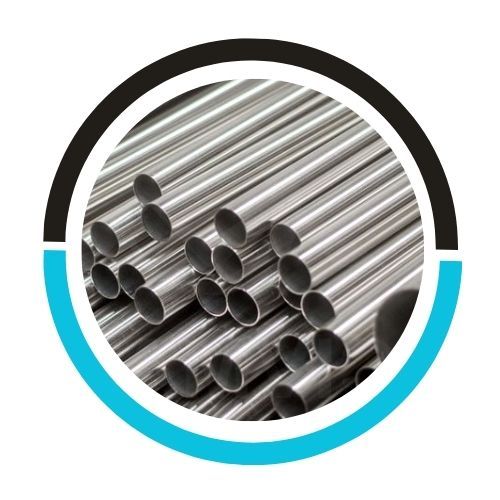

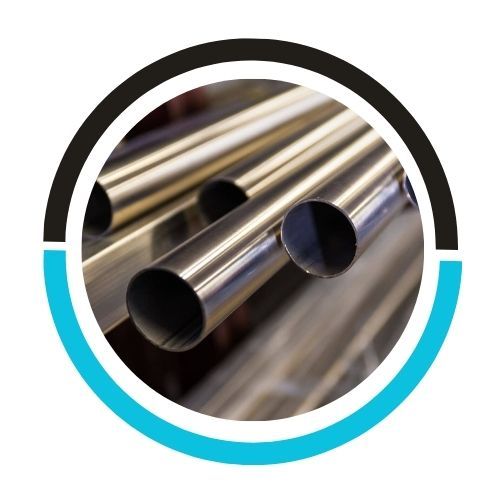

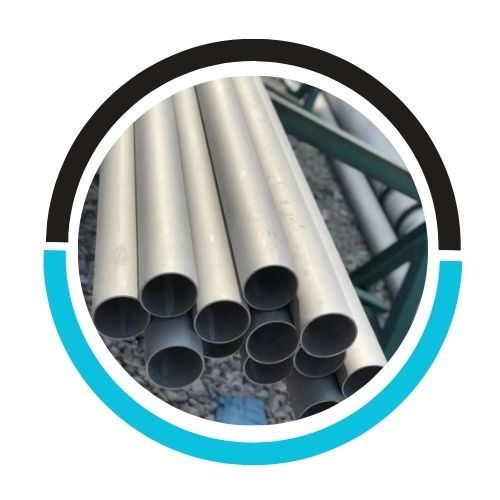

Type | : | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Monel k500 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel k500 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.

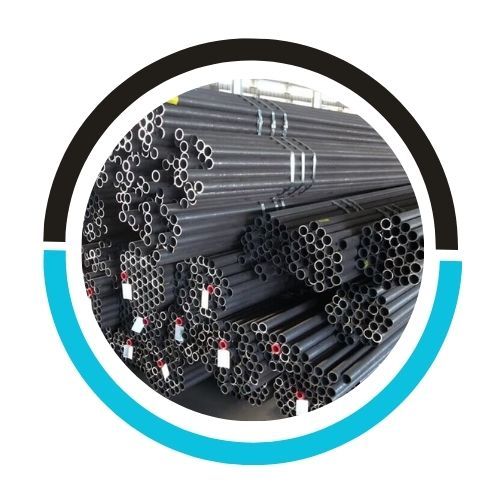

We offer These Monel k500 Tubes as per DIN, ISO, JIS or ANSI Standard.

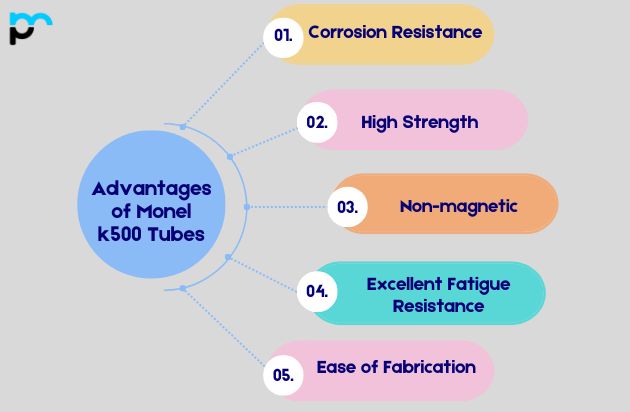

Corrosion Resistance: Monel K500 is highly resistant to corrosion, particularly in environments where saltwater, acids, and alkalis are present. This makes it suitable for marine and chemical processing applications.
High Strength: It has excellent mechanical properties at both room and elevated temperatures. This high strength allows for thinner-walled tubes, reducing weight and material cost without sacrificing performance.
Non-magnetic: Monel K500 is non-magnetic, which is advantageous in applications where magnetic interference is a concern, such as in electronic or sensitive instrumentation systems.
Excellent Fatigue Resistance: It exhibits good fatigue and erosion resistance, making it durable in high-stress applications and environments prone to wear.
Ease of Fabrication: Monel K500 can be easily fabricated using standard machining and welding techniques, allowing for complex designs and configurations.
Monel k500 Tube applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Marine Engineering: Monel K500 is extensively used in marine environments due to its exceptional resistance to seawater corrosion. It is used for tubing in seawater cooling systems, offshore platforms, and shipbuilding.
Oil and Gas Industry: In oil refineries and natural gas processing plants, Monel K500 tubes are employed for tubing in equipment exposed to corrosive fluids and gases. This includes applications in heat exchangers, condensers, and pipelines.
Chemical Processing: Monel K500’s resistance to acids and alkalis makes it ideal for use in chemical processing equipment. It is used for tubing in reactors, storage tanks, pumps, and valves where corrosion resistance is crucial.
Aerospace: Due to its high strength and resistance to fatigue, Monel K500 tubes are used in aircraft components such as hydraulic tubing, fuel lines, and structural elements where lightweight materials with superior performance are required.
Mechanical Properties: Consider the mechanical strength requirements such as tensile strength, yield strength, and hardness. Monel K500 offers high strength and toughness, suitable for high-stress applications.
Temperature Range: Determine the operating temperature range of your application. Monel K500 maintains its mechanical properties over a wide temperature range, but verify it meets your specific temperature requirements.
Fabrication Requirements: Consider how the tubes will be fabricated and installed. Monel K500 can be machined and welded using standard techniques, but ensure your fabrication methods align with the material’s properties.
