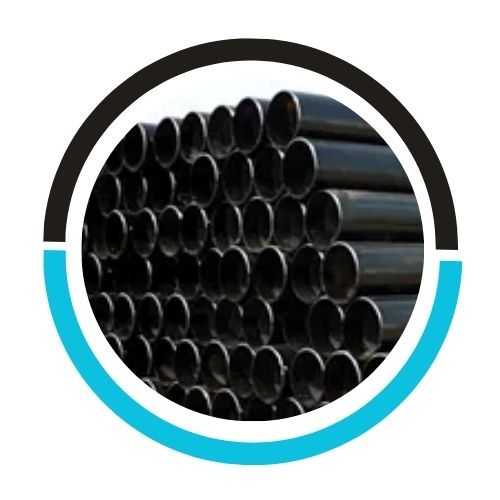

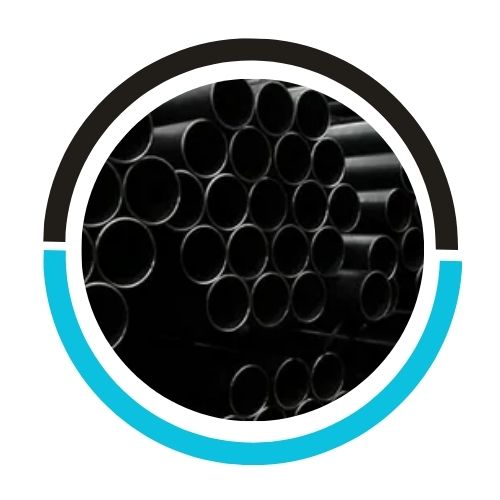

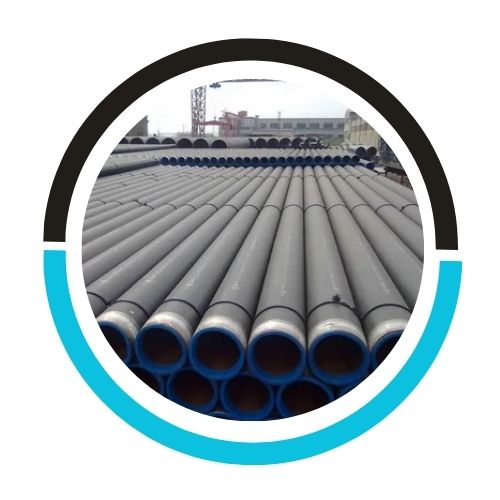

Home > Carbon Steel > Carbon Steel en-10216-3 Pipes
Size : Round Pipes – OD 13.7-1214mm
Square Pipes – 10 X 10 mm – 800 X 800 mm
Rectangular Pipes – 10mm x 20mm – 400 x 800mm
Wall Thickness : 1.0mm – 40mm
Length : 6 Meter, 12 Meter & Custom Size
Type : Square, Round, Rectangular
Seamless, Welded, Fabricated, ERW
Surface Finish : Shot Blasting, Black Phosphating, Black, Oiled, Paint, Hairline, Mirror, Galvanized, Anti Corrosive
Material Grades : N/NH/NL1/NL2
End Type : Plain, Bevel, Screwed, Threaded
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.20 | max 0.50 | 0.90-1.70 | 0.025 | 0.02 | max 0.08 | max 0.50 | max 0.30 | max 0.30 | V max 0.10 Nb max 0.05 Ti max 0.04 Al min 0.020 Nb+Ti+V max 0.12 |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 490 | 650 | – | 22 | ||
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Carbon Steel en-10216-3 as per DIN, ISO, JIS or ANSI Standard.
Carbon Steel en-10216-3 Pipes applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
